Examples of Triangulation

Delauney triangulation of many points in xy plane

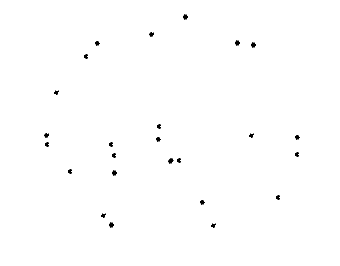

25 points

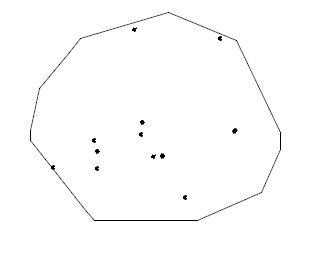

compute convex hull of points: Point3d[]	const hull: Point3d[] = []; const interior: Point3d[] = []; Point3dArray.computeConvexHullXY(points, hull, interior, true);
One step points: Point3d[] to Polyface	const polyface = PolyfaceBuilder.pointsToTriangulatedPolyface(points);

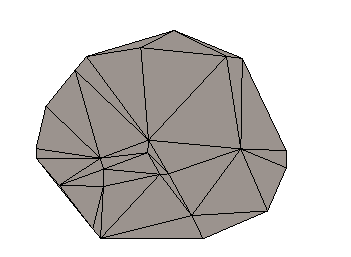

IndexedPolyface with all the points triangulated.

Unit Test

• source: core\geometry\src\test\topology\InsertAndRetriangulateContext.test.ts
• test name: "TriangulateInHull"
• output: core\geometry\src\test\output\InsertAndRetriangulateContext\TriangulateInHull.imjs

Triangulate points "between linestrings"

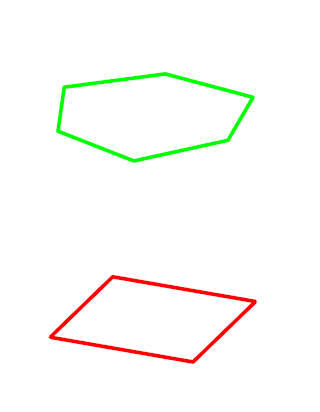

4 and 6 sided polygons

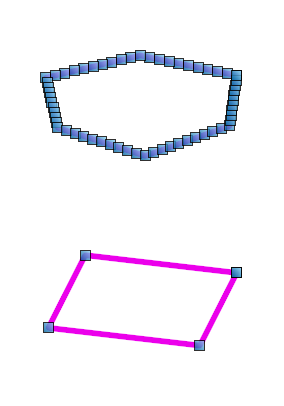

Same polygons displayed with <br>handles to indicate the two linestrings have edge subdivision mismatch <br> in addition to the different cornering angles

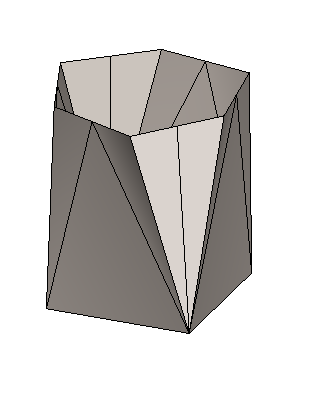

triangles constructed "between" the polygons

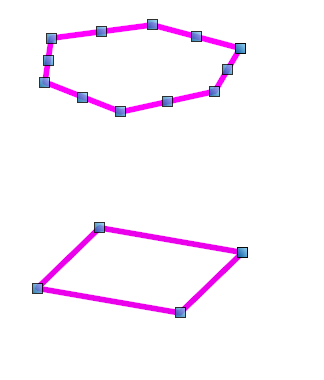

Same polygons, another mix of points along edges

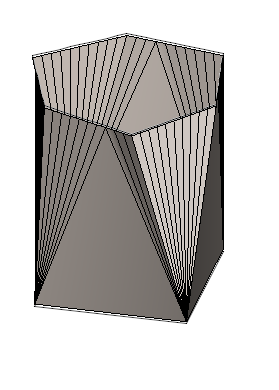

triangles constructed "between" the polygons

Unit Test

• source: core\geometry\src\test\Polyface\GreedyTriangulationBetweenLineStrings.test.ts
• test set: describe("GreedyTriangulationBetweenLineStrings"
• test name: quadStar
• output: core\geometry\src\test\output\GreedyTriangulationBetweenLineStrings\quadStar.imjs
